Electron Pushing in Organic Chemistry

  • General Info

    This handout deals with electron pushing arrows: the movement of a pair of electrons from an electron rich site (a lone pair of electrons or a bond) to an electron poor site. Electron pushing arrows are used as a "bookkeeping" device to easily keep track of bonding and formal charges when interconverting resonance structures or depicting reactions. Used properly, they have tremendous value not just for understanding reactions, but also for for predicting chemical reactivity

    There are two fundamental types of electron pushing processes:

    Two fundamental types of electron pushing processes: bond breaking and bond making

    In each case, the formal charge becomes one unit more positive at the starting atom and one unit more negative at the terminal atom.

    A third very commonly used type, Bond Movement, is used to depict synchronous processes. A Bond Movement arrow starts at a σ or π bond, and ends at a sextet atom, forming a new σ or π bond:

    Third type of electron pushing processes: Bond Movement

    It is really shorthand for consecutive or simultaneous bond breaking and bond making processes:

    Bond Movement electron pushing is shorthand for consecutive or simultaneous bond breaking and bond making processes

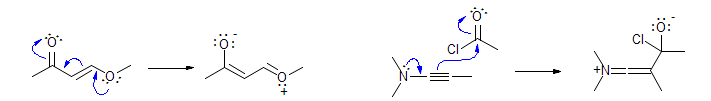

    When a Bond Making or Bond Movement arrow ends at an octet atom, then a Bond Breaking or a second Bond Movement processes has to "clear out" the extra pair of electron. If this cannot be done in an electronically reasonable fashion, then the process is not feasible. In this way a series of electron movements can be strung together. Again, all of the central carbons have no change in their charges or number of bonds, the first and last atoms change as for Bond Making and Bond Breaking processes. Note that the last arrow in a chain must be either a bond making arrow terminating at a sextet atom, or a bond breaking arrow.

    a series of electron movements can be strung together

    Common problems with electron pushing

    Watch for violations of the octet rule - always specifically draw in all of the atoms (including hydrogens and lone pairs) at any atom undergoing a transformation.

    Draw arrows in the right direction (from donor to acceptor). We may think of a proton as attacking a double bond, but in electron-pushing terms, it is the double bond that is attacking the proton.

    Draw arrows in the right direction: from donor to acceptor

    Clearly distinguish formal positive charge and electron deficiency (a sextet atom). Cationic species like oxonium ions, ammonium ions and the like are usually NOT electrophilic at the atom bearing the formal positive charge. Each of the species below has electrophilic properties, but the positively charged O and N atoms are not electrophilic - it is the atoms attached to O and N that are electrophilic and thus subject to attack by bases and nucleophiles.

    Oxonium ions, ammonium ions and the like are usually NOT electrophilic at the atom bearing the formal positive charge. It is the atoms attached to O and N that are electrophilic and thus subject to attack by bases and nucleophiles.

    However, this structure has to be relaxed for heavier elements like P and S which are capable of forming compounds that formally violate the octet rule

    Exceptions of octet rule for heavier elements like P and S

    Similarly, make a clear distinction between formal negative charges and lone pairs of electrons - they are not always synonymous. For boron and aluminum ate complexes, there are no lone pairs. Any donor character arises from the sigma bonds attached to the negatively charged atom.

    For delocalized structures, you must pick a specific resonance structure to do any electron pushing - the "dotted line" formulas and circle structures for aromatic systems do not work, since bonds and electron pairs are not shown.

    Dotted line notation does not work for any electron pushing

    Do not combine multiple steps into one long series of arrows. An experienced chemist may be able to get away with this sort of behavior, but such mechanisms are confusing and can contain fatal errors. If a reaction involves a true intermediate, your mechanism should reflect that.

    Combining multiple steps into one long series of arrows is usually a bad practice
  • Electron Pushing -- Acid Catalysis

      Brønsted Acids: basically proton donors.

       H3O+, H2SO4, HBr, HCl, H3PO4, etc

      Lewis Acids: Neutral molecules or cations with a low lying vacant orbital. Often a metal with several electronegative ligands (F, Cl, Br, OTf, OAc, etc)

       BF3, MgBr2, SnCl4, TiCl4, FeCl3, AlCl3, MeAlCl2, Me2AlCl, LiClO4, etc

       Ag+ (special affinity for Cl, Br, I), Hg++ (special affinity for S, C=C, C≡C)

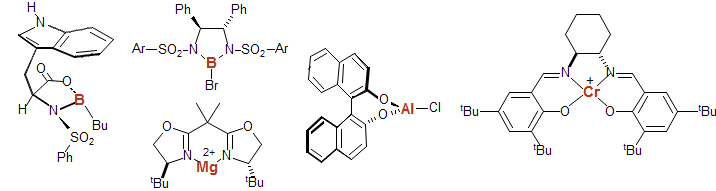

      In addition to these inorganic Lewis acids, there are many chiral "designer" Lewis acids for initiating acid catalyzed reactions with asymmetric induction:

    picture of chiral 'designer' Lewis acids for initiating acid catalyzed reactions with asymmetric induction

      Related to Lewis acids are powerful alkylating (Me3O+ BF4- and MeOTf) or silylating (Me3SiOTf) agents which initiate similar chemistry, but the first step is a methyl or silyl transfer.

      Bronsted and Lewis acids catalyze reactions by attaching to nucleophilic sites (lone pairs on O, N, S, π-bonds) in molecules, and activating the molecule to attack by nucleophiles. The equilibrium favoring the product cation (and thus the rate of subsequent reactions) is determined by the strength of the acid and the stability of the cation produced (among other factors).

    a scheme of common Bronsted and Lewis acids catalyze reactions

    Normally a positively charged atom is an electrophilic site only if it has a sextet of electrons or is otherwise electron deficient. Oxonium O and ammonium N atoms are not normally electrophilic centers. On the other hand, onium ions of the heavier elements (e.g., P, As, Se, Te, Br, I) are subject to nucleophilic attack.

      Electrophilic catalysis is very closely related to oxidation.

    a scheme demonstrating electrophilic catalysis is very closely related to oxidation

      Carbenium ions readily undergo rearrangement (Wagner-Meerwein)

    a scheme demonstrating carbenium ions rearrangement (Wagner-Meerwein)

    Some named reactions which involve carbocation intermediates:
        Wagner-Meerwein Rearrangement,
        Pinacol Rearrangement,
        Friedel-Crafts Acylation and Alkylation,
        Bischler-Napieralski Reaction,
        Pictet-Spengler Reaction,
        Beckmann Rearrangement,
        Tiffaneau-Demjanov Rearrangement,
        Ferrier Rearrangement,
        Nazarov Cyclization,
        Pechmann Reaction,
        Prins Reaction,
        Ritter Reaction,
        Leuckhart-Wallach Reaction,
        Meyer-Schuster Rearrangement,
        Rupe Reaction

      Carbenium Ions with unusual properties

    a scheme displaying carbenium ions with unusual properties

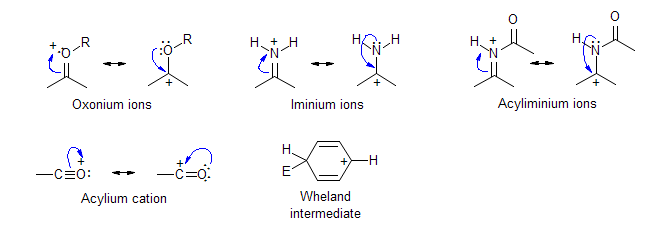

      Common Stabilized Carbenium Ion Reaction Intermediates

    a scheme displaying common stabilized carbenium ion reaction intermediates
  • Electron Pushing -- Basic and Nucleophilic Catalysis

      A basic atom is one bearing a lone pair of electrons, or a strongly polarized sigma bond (such as C-Li or C-MgBr) or pi bond (such as an enamine).

      Common bases: NaOH, NaOAc, Na2CO3, KOtBu, NaNH2, n-BuLi, tBuLi, NEt3, N(iPr)2Et (Hünig's base)

    a figure displaying the continued list of common organic bases: LDA, KHMDS, LiTMP, DABCO, DBN, and DBU

      Bases/nucleophiles interact with molecules in four main ways. All of these reactions are especially facile when the charge ends up on an electronegative heteroatom (O, N, S, Cl, Br, F)

      1. Deprotonation of acidic hydrogens. To form finite amounts of the anionic product X- from X-H at equilibrium, the pKA of X-H must be comparable or lower than the pKA of B-H. To get reasonable rates of formation of the anionic product, the X-H bond being broken must have a pKA that is no more than about 10 pKA units higher than that of B-H; e.g., hydroxide ion (pKA of H2O ca 15) can effectively catalyze the formation ketone enolates (pKA of ketones ca 20) but not those of alkyl sulfones (pKA ca 30).

    a scheme of multiple reactions depicting deprotonation of acidic hydrogens

      2. Nucleophilic addition to C=X and activated C=C multiple bonds (e.g., Michael Reaction). These reactions also work best when a reasonably stabilized anion is being formed. The reverse reaction (retro-Michael) occurs readily if the nucleophile was a stabilized anion.

    a scheme of multiple reactions depicting nucleophilic addition to C=C or C=X multiple bonds

      3. Nucleophilic substitutions.

    a scheme of multiple reactions depicting nucleophilic substitution

    It is permissible to violate the octet rule with heavier elements, but always be careful not to lose track of charges and electrons when you do so.

    Aromatic nucleophilic substitution - requires strong anion stabilizing groups on the aromatic ring.

    a scheme depicting aromatic nucleophilic substitution

      4. Nucleophilic additions to sextet atoms:

    a scheme depicting nucleophilic additions to sextet atoms

      Carbanion rearrangements are much less common than those of carbocations. Here are a few name reactions:

        Ramberg-Backlund Reaction

        Grovenstein-Zimmerman Rearrangement

        Favorskii Rearrangement

        Stevens Rearrangement

        Wittig ([2,3] sigmatropic) Rearrangement

      Carbanions with unusual properties:

    a scheme displaying carbanions with unusual properties

  • An Example Questions is available as a PDF file.

  • An Example Questions-Answers is available as a PDF file.

  • Acetal formation
  • Acetal Hydrolysis
  • Acetal Interchange - Anomeric Substitution

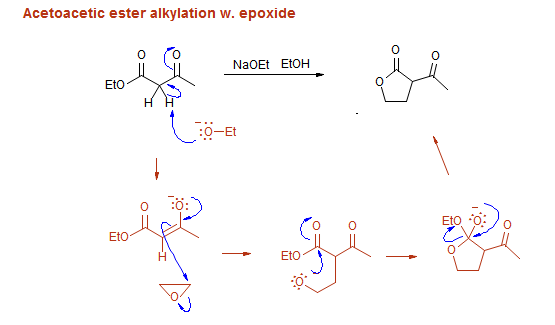

  • Acetoacetic ester alkylation w. epoxide
  • Acetylation of Alcohol
  • Acetylation of Amine
  • Aldol Condensation

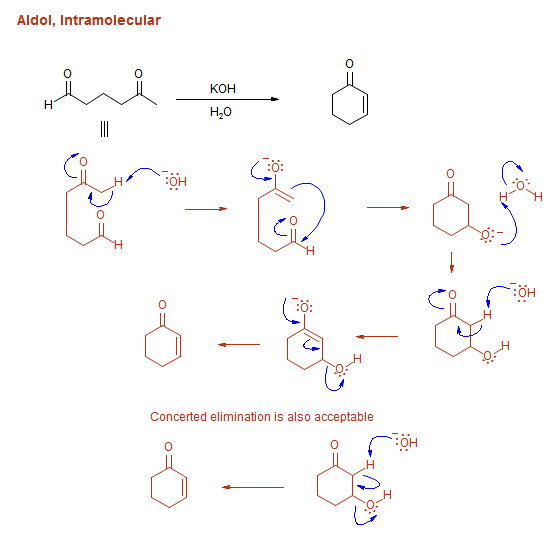

  • Aldol, Intramolecular
  • Azlactone Formation
  • Baeyer-Villiger Oxidation
  • Chlorination of a ketone - acid catalyzed
  • Decarboxylation of a β-Keto Acid
  • Edman Degradation
  • Electrophilic Aromatic Substitution - Alkylation
  • Electrophilic Aromatic Substitution - Nitration
  • Enone Isomerization

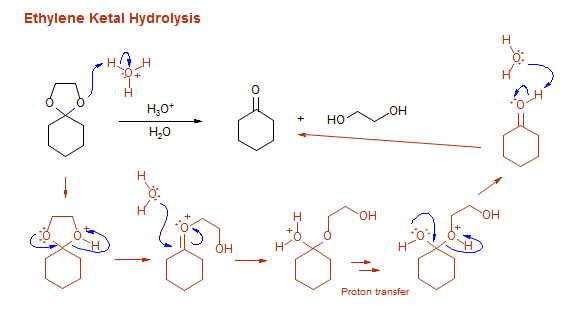

  • Ethylene Ketal Hydrolysis
  • Hydrolysis of Carboxylic Amide - Acid Catalyzed
  • Kolbe Reaction - Salicylic Acid
  • Phthalimide Hydrolysis - Base Catalyzed
  • Reductive Amination
  • Retro-Aldol -- Aldol
  • Retro-Dieckmann-Dieckmann
  • Robinson annelation
  • SN1 Substitution
  • Wolff-Kishner Reduction
