Symmetry in Organic Chemistry
Symmetry in Organic Chemistry
The symmetry of a molecule is determined by the existence of
symmetry operations performed with respect to symmetry elements.
A symmetry element is a line, a plane or a point in or through an object,
about which a rotation or reflection leaves the object in an orientation
indistinguishable from the original. A plane of symmetry is designated by the
symbol σ (or sometimes s), and the reflection operation is the
coincidence of atoms on one side of the plane with corresponding atoms on the
other side, as though reflected in a mirror. A center or point of symmetry is
labeled i, and the inversion operation demonstrates coincidence of
each atom with an identical one on a line passing through and an equal
distance from the inversion point (see chair cyclohexane). Finally, a
rotational axis is designated Cn, where the degrees of
rotation that restore the object is 360/n (C2 = 180º rotation,
C3 = 120º rotation, C4 = 90º rotation,
C5 = 72º rotation). C1 is called the identity operation
E because it returns the original orientation.
An object having no symmetry elements other than E is called
asymmetric. Such an object is necessarily chiral. Since a plane or
point of symmetry involves a reflection operation, the presence of such an
element makes an object achiral. One or more rotational axes of
symmetry may exist in both chiral, dissymmetric, and achiral objects.
Three dimensional models illustrating these symmetry elements are displayed below. Pick an example from the list on the left to load it into the viewer, then use the buttons under the viewer to highlight the symmetry elements of that structure. The fourth (trans-1,2-dimethylcyclopropane) and seventh (cyclohexane twist-boat) examples are dissymmetric. The others are achiral.
Examples
One more symmetry operation must be defined. Both
trans-dimethylcyclopropane and 1,3,5,7-tetrafluorocyclooctatetraene
have a C2 axis, and both lack a plane or center of symmetry. The
former is chiral, but the latter is achiral because it has a S4
improper rotational axis (sometimes called an alternating axis). An improper
axis, Sn, consists of a n-fold rotation followed by
reflection through a mirror plane perpendicular to the rotation axis (n is
always 3 or larger because S1 = σ and S2 = i). This
is equivalent to saying that a n-fold rotation converts an object into its
mirror image.
The S4 element in 1,3,5,7-tetrafluorocyclooctatetraene can be
examined in the viewer above by loading the
S4 improper-axis demo example, then stepping through
Show 90° Rotation → Reflect in Perpendicular Plane →
Show Full S4 Operation.
Symmetry Point Groups
An object may be classified with respect to its symmetry elements or
lack thereof. This is done by assigning a symmetry point group,
reflecting the combination of symmetry elements present in the structure.
For example, bromochlorofluoromethane has no symmetry element other than
C1 and is assigned to that point group. All C1 group
objects are chiral. Other low symmetry point groups are Cs
(only a single plane of symmetry) and Ci (only a point of
symmetry). Objects in either of these point groups are achiral.
Some objects are highly symmetric and incorporate many symmetry elements.
Methane is an example of a high symmetry molecule, having 4 C3
axes, 3 C2 axes and 6 σ (planes); it belongs to the tetrahedral
point group Td. When combinations of rotational axes and planes
are present, their relationship is designated by a v (vertical),
h (horizontal) or d (diagonal). Thus, a plane containing the principle
rotation axis is σv, a plane perpendicular to the principle
rotation axis is σh, and a plane parallel to the principle
rotation axis but bisecting the angle between two C2 axes is
σd. By this notation, the six planes of the methane tetrahedron
are all σd. Load the Methane example above and use its
symmetry-element buttons to see them.

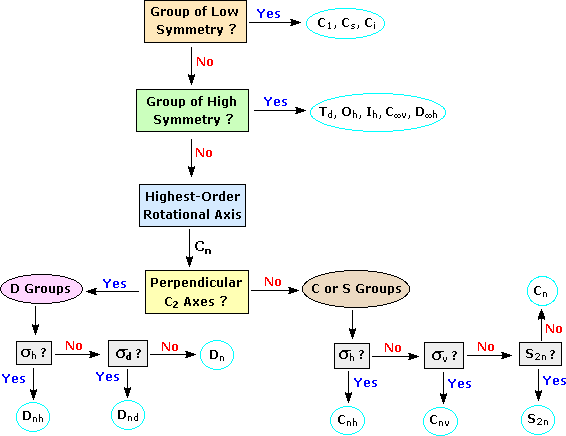

Objects of intermediate symmetry may be assigned to appropriate point groups by following the decision tree shown below. For example, trans-1,2-dichloroethene, which has a C2 axis perpendicular to its single plane of symmetry, belongs to the C2h point group.
Point Group Decision Tree
Stereogenic Elements and Stereoisomerism
Recognition of the three dimensional shape of molecules and the resulting
symmetry implications is fundamental to an understanding of organic
chemistry, especially stereoisomerism. The common occurrence of chiral
centers, often asymmetric carbon units, in both natural and synthetic
compounds has been
described. In this section the treatment of chiral and achiral
stereogenic elements will be extended to axes and planes.

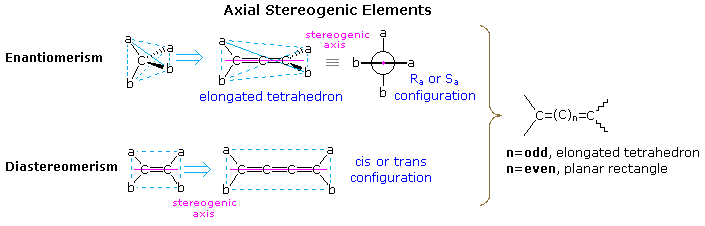

The following diagram illustrates the structural relationship of a
disubstituted tetrahedral carbon (Ca2b2) to an allene
(top row), and a disubstituted alkene (abC=Cab) to an analogous
1,2,3-cummulene. In each case the structure is elongated by the insertion of
two additional carbons. As a result of this elongation, the symmetry planes
bisecting the a-C-a or b-C-b angles of the simple achiral tetrahedron are
lost, and the allene is found to be chiral. Since no chiral center exists in
this molecule, its chirality is due to the dissymmetric orientation of
substituents about a chiral axis (the axis defined by the three
carbon atoms of the double bonds). No dramatic change of this kind is
observed for the alkene elongation shown at the bottom. The cis / trans
diastereoisomerism observed in achiral compounds of this kind is due to the
same axial stereogenic element present in the alkene itself. A general rule
relating the spatial orientation of terminal substituents in cumulenes of
varying size to the number of sp-hybridized carbon atoms is shown on the
right in the diagram.
To assign a
stereochemical prefix, i.e. Ra or Sa
(the subscript a refers to the axial chirality), to chiral configurations of
this kind the structure must be viewed from one end of the stereogenic axis
(it doesn't matter which). A Newman projection, like the one seen from the
left shown here, is then used for the assignment. If the sequence order of
substituents is a > b, then the two substituents nearest the viewer are
assigned a ranking of 1 (a) and 2 (b), while the remote substituents are
given rankings of 3 (a) and 4 (b). Applying the viewing rule then leads to a
unique notation (Ra in this case). This procedure may be
used even when the A & B substituents on one sp2 carbon are
different from those on the other sp2 carbon. For additional
information about allenes, including the nomenclature of dissymmetric
allenes and models of enantiomeric 2,3-pentadiene
Click Here.
By clicking on the above diagram, additional
examples of axial chirality will be displayed. The substituted
alkylidenecycloalkanes and spiro-bicyclic alkanes are analogous to the
allene and cummulene systems if one considers the double bonds to be
two-membered rings. Thus, depending on the number of such units linked
together, the terminal substituents will either be orthogonal or coplanar.
These configurations are relatively rigid. Converting one to the other
requires breaking and making bonds.
Substituted biphenyls, on the other hand, exhibit a conformational
enantiomorphism sometimes called atropisomerism. The configurational
stability of such isomers depends on the energy barrier to rotation about
the single bond connecting the rings, and this in turn is proportional to
the size of the ortho-substituents on each ring. The stereoisomerism of
substituted biphenyls has been described
elsewhere in this
text, together with other examples.

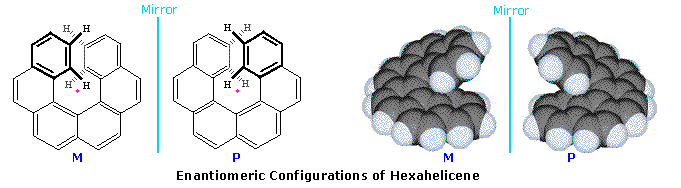

A similar axial dissymmetry is found in helical molecules, such as hexahelicene. Two views of the enantiomers of this interesting molecule are displayed below. When the configuration is viewed from above (or below) the helical turn, as shown by the structures on the left, its handedness may be established by the direction in which it turns. Imagine the helix is part of a screw, the axis of which is represented by the pink dot. If a clockwise turn of the screw would move it away from the viewer it is considered to have a plus or P configuration, also termed Ra or Rh by some. In contrast, if a counterclockwise turn moves the helix away it has a minus or M configuration, sometimes called Sa or Sh. Interactive models of enantiomeric hexahelicenes will be shown by clicking on the diagram.

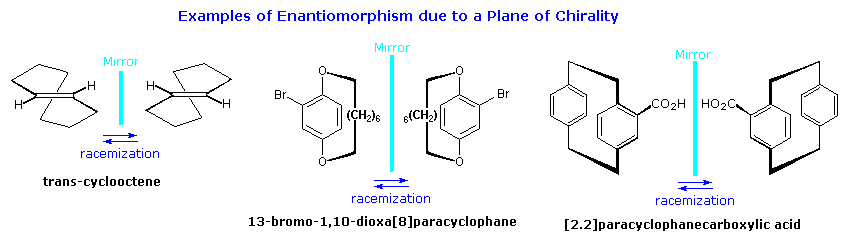

Molecules having a plane of chirality are also known. Three
examples are shown in the following diagram, and it should be noted that
there is no asymmetric carbon present in any of them. In order to provide
such chiral structures with a configurational prefix, a viewing rule has
been established. First, the atom of highest priority (according to the CIP
rules) that is directly bound to an atom in the chirality plane must be
found. This atom, known as the pilot atom (P),
is the point from which the chiral plane is viewed. In the ansa compound,
13-bromo-1,10-dioxa[8]paracyclophane, the chiral plane is the aromatic
ring. The pilot atom is the oxygen-bound methylene carbon atom closest to
the bromine atom on the aromatic ring. Starting from the pilot atom, the
next three consecutive atoms in the chirality plane are labelled a,
b, and c. In the case of branching options, the atom of
highest CIP priority is selected. For the ansa compound, this leads to the
aromatic carbon atom bound to bromine as c. Finally, the absolute
configuration is called Sp or M if the atom
sequence a–b–c, viewed from above the P–a bond, describes a
counterclockwise arc. The configuration is termed Rp or
P if this atom sequence describes a clockwise arc, as in its mirror
image. The subscript p denotes that the configuration is established
relative to a plane of chirality.
By clicking on the diagram the pilot atoms for
each compound will be designated, and the a–b–c sequence for the
ansa compound will be displayed.
The chiral plane in trans-cyclooctene is roughly the plane of the double bond, and in [2.2]paracyclophanecarboxylic acid it is roughly the plane of the aromatic ring bearing the carboxyl group. Due to strain, neither of these groups is truly coplanar, as may be seen in the three-dimensional models available below. Each model will display the pilot atom (there are two equivalent pilot atoms in trans-cyclooctene) and the resulting configurational sequence of atoms.
For a model of [2.2]paracyclophanecarbocyclic acid enantiomers .
The following questions will test your understanding of these principles:
